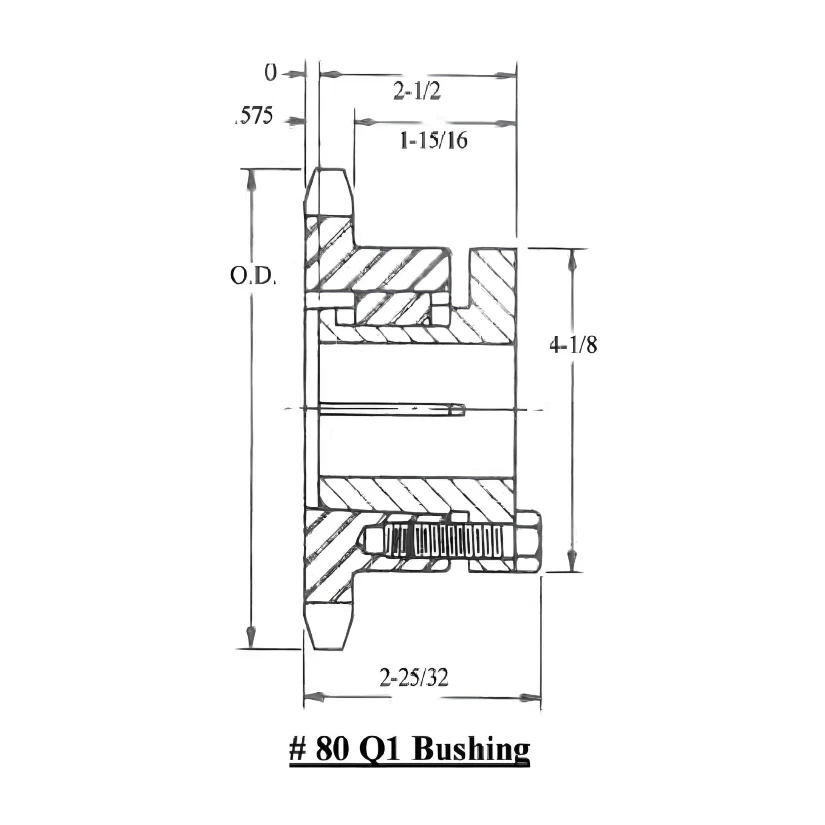

Product Details : 80P16 Split Taper Bushed Sprocket | 80P16H

Part No: 80P16H
Product Type: ST (Split Taper)
Bushing Type: Q1
Chain Strand Type: Single
ANSI Chain Size: 80
No. Of Teeth: 16
Pitch: 1"
Pitch Diameter: 5.126"
Outside Diameter: 5.630"
Bore Max.: 2-11/16"
Material(s): Carbon Steel
Hardened Teeth: Yes
Certifications: Manufactured using the ISO 9001 quality management system.
Avg. Weight (lbs): 4.6

For any information about products, please contact us.

*Photos for reference purposes only.

Split Taper Bushed Sprockets
